項目Item

規格Specifications

步距角精度Step Angle Accuracy

± 5% (full step, no load)

電阻精度Resistance Accuracy

± 10%

電感精度Inductance Accuracy

± 20%

溫升Temperature Rise

80°C Max. (rated current, 2 phase on)

環境溫度Ambient Temperature

- 10°C ~ +50°C

絕緣等級Insulation Class

B

介電強度Dielectric Strength

500 VAC for one minute

轉軸徑向跳動Shaft Radial Play

0.06 Max. (450 g-load)

轉軸軸向跳動Shaft Axial Play

0.08 Max. (450 g-load)

型號
Model No.

電壓
Rated Voltage

電流
Current

電阻
Resistance

電感
Inductance

最大靜力矩Holding Torque

引出線

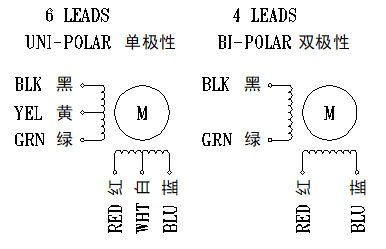

#  of       Leads

轉動慣量Rotor Inertia

重量Weight

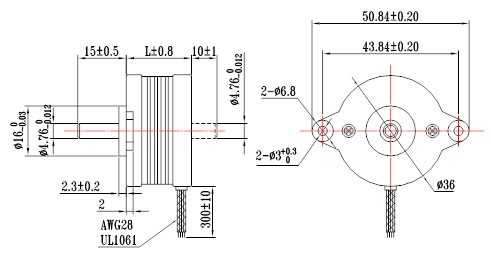

機身長度Length

單出軸
Single Shaft

雙出軸
Double Shaft

V

A

W

mH

Oz-in

Kg-cm

g-cm2

Kg

mm

36BYG9001

36BYG9001B

5.88

0.35

168

8.5

4.86

0.35

4

3

0.05

12.35

36BYG9101

36BYG9101B

4.64

0.4

11.6

7.7

11.1

0.8

4

8

0.09

20
