Item

Specifications

步距角精度Step Angle Accuracy

± 5% (full step, no load)

電阻精度Resistance Accuracy

± 10%

電感精度Inductance Accuracy

± 20%

溫升Temperature Rise

80°C Max. (rated current, 2 phase on)

環境溫度Ambient Temperature

- 10°C ~ +50°C

絕緣等級Insulation Class

B

介電強度Dielectric Strength

500 VAC for one minute

轉軸徑向跳動Shaft Radial Play

0.06 Max. (450 g-load)

轉軸軸向跳動Shaft Axial Play

0.08 Max. (450 g-load)

型號
Model No.

引出線
# of
Lead

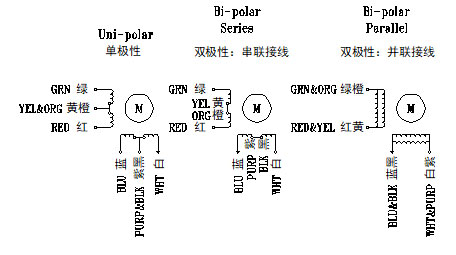

接線方式Connection

電壓Rated Voltage

電流
Current

電阻
Resistance

電感
Inductance

最大靜力矩
Holding Torque

轉動慣量
Rotor
 Inertia

重量Weight

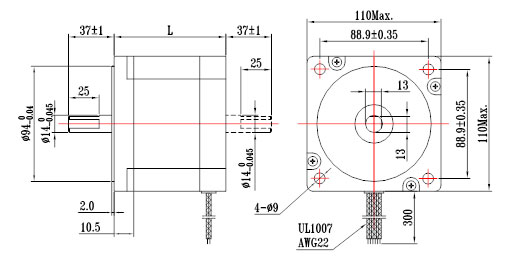

機身長度Length

Uni-P.

V

A

W

mH

Oz-in

Kg-cm

g-cm2

Kg

mm

110BYGH011-8A

8

*

5.04

5.6

0.9

6.3

1180

85

4300

4.5

80

S

7.2

4

1.8

25

1666

120

P

3.6

8

0.45

6.3

1666

120

110BYGH201-8A

8

*

7.39

4.2

1.76

13.2

972

70

5500

5.0

98

S

10.21

2.9

3.52

52.8

1360

98

P

5.19

5.9

0.88

13.2

1360

98

110BYGH401A-8A

8

*

7.8

6.0

1.3

13.4

1944

140

11000

8.4

146

S

10.92

4.2

2.6

53.6

2722

196

P

5.46

8.4

0.65

13.4

2722

196
