項目Item

規格Specifications

步距角精度Step Angle Accuracy

± 5% (full step, no load)

電阻精度Resistance Accuracy

± 10%

電感精度Inductance Accuracy

± 20%

溫升Temperature Rise

80°C Max. (rated current, 2 phase on)

環境溫度Ambient Temperature

- 10°C ~ +50°C

絕緣等級Insulation Class

B

介電強度Dielectric Strength

500 VAC for one minute

轉軸徑向跳動Shaft Radial Play

0.06 Max. (450 g-load)

轉軸軸向跳動Shaft Axial Play

0.08 Max. (450 g-load)

型號
Model No.

電壓
Voltage

電流
Current

電阻
Resistance

電感
Inductance

輸出力矩　Output Torque

最大靜力矩Holding Torque

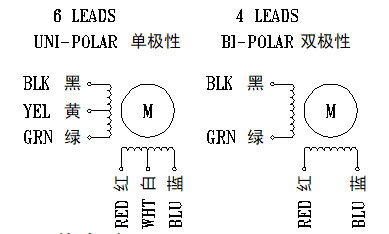

引出線
#  of
 Leads

步距角
Step Angle

減速
比
Gear
 ratio

電機
長度

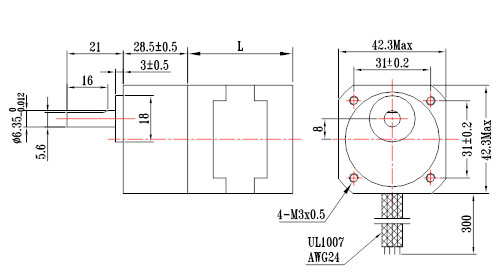

L

V

A

W

mH

Oz-in

Kg-cm

Oz-in

Kg-cm

Full step

mm

42BYGH010-G36

1.65

1.5

1.1

1.6

747

53.8

32

2.3

4

0.050°

36

34

42BYGH102-G18

3.6

1.2

3

3.2

453

32.6

36

2.59

6

0.100°

18

40

42BYGH113-G10

5.4

0.85

6.3

10

400

28.8

50

3.6

4

0.180°

10

40

42BYGH405-G7.2

5.3

0.85

6.2

11

352

25.3

62

4.4

4

0.250°

7.2

48

42BYGH416-G3.6

6.0

0.8

7.5

6.3

127

9.13

44

3.17

6

0.500°

3.6

48

42BYG9001-G10

4.0

0.95

4.2

3.2

176

12.6

22

1.58

6

0.090°

10

34

42BYG9102-G5

2.8

1.68

1.65

3.8

200

14.4

50

3.6

4

0.180°

5

40

42BYG9404-G3.6

2.8

1.68

1.65

4.8

176

12.7

62

4.4

4

0.250°

3.6

48
